Hopper Freight Consists: What is the Importance of These Supply Chain Connections?

Article and photographs by Divi Logan.
Updated with Field Note Corrections. 22 February 2026.

What are Hoppers in the World of the Freight Railroad?

Hoppers are the workhorses of the cargo car fleet. These cars carry tons of commodities every day. Open hoppers do not have roofs, so they carry materials such as coal, sand, ballast, gravel and wood chips. They have chutes underneath for unloading the products.

Open Hopper Consists

1, Westbound Open Hopper Consist. Riverside, IL. 20 September 2022.

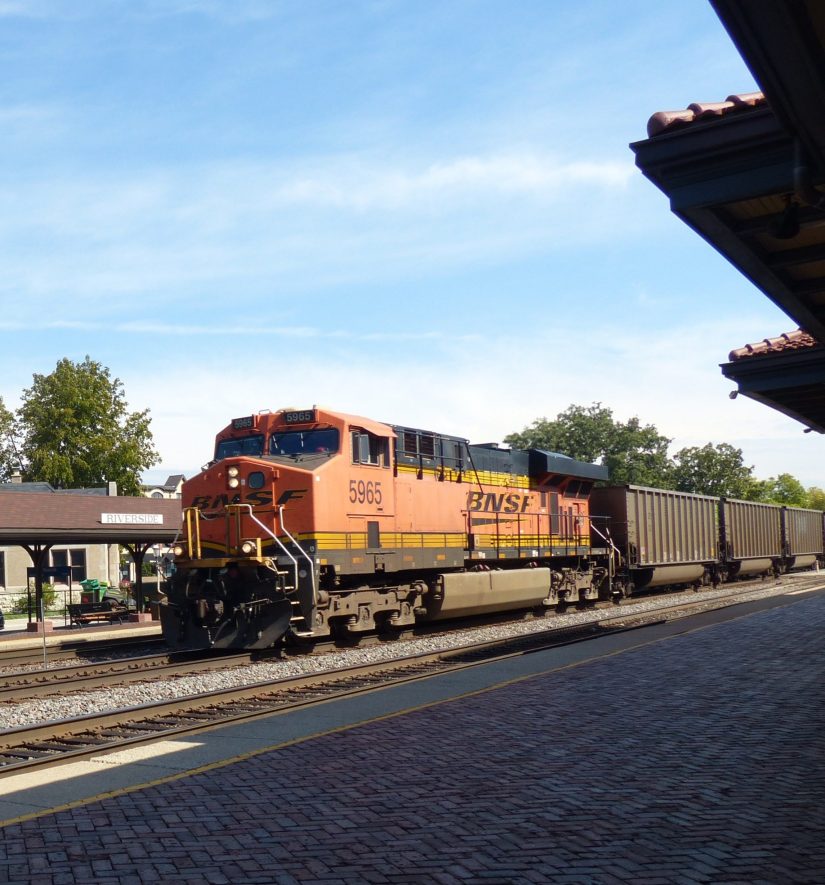

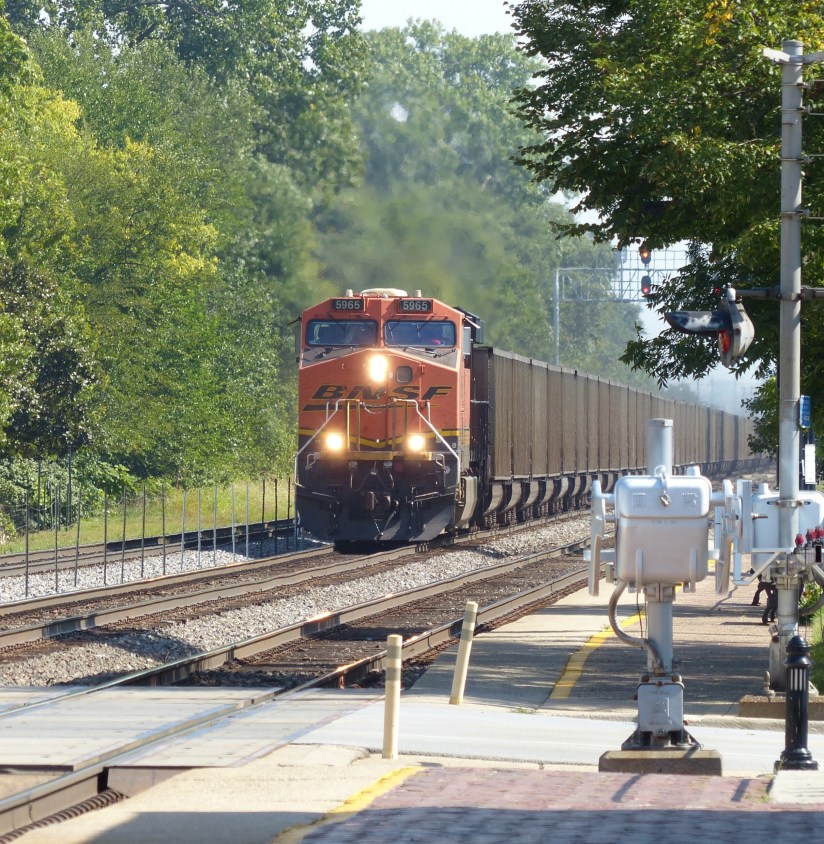

BNSF #5965 is the single leading unit for this westbound hopper consist moving through Riverside, IL on 20 September 2022. Locomotive specs: Model is a GE ES44AC. Serial number: 56813. Order number: 1900. Built: 04//2006.

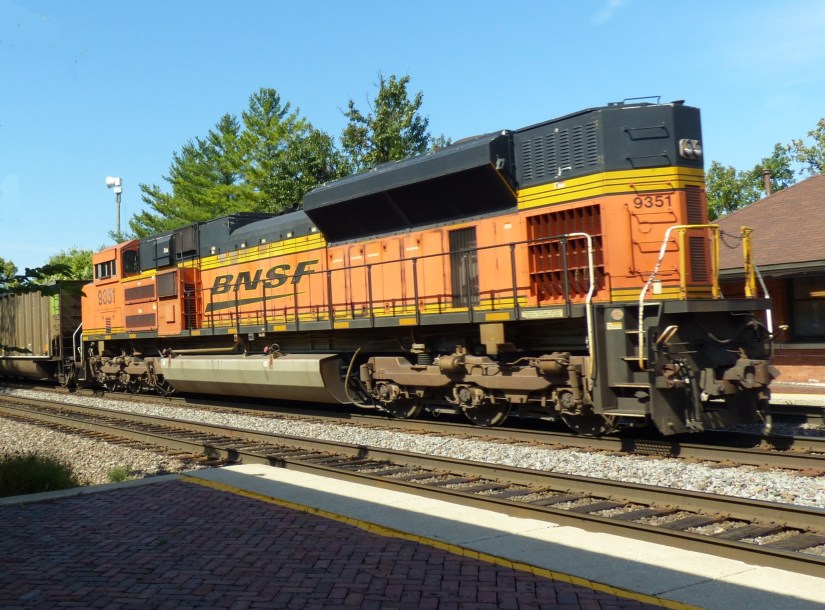

BNSF #9351 is the single DPU for the westbound hopper consist through Riverside, IL. 20 September 2022. Locomotive specs: Model is an EMD SD70ACe. Serial and frame number: 20056766-022. Order number: 20056766. Built: 08/2006.

2. Eastbound Open Hopper Consist. Riverside, IL. 21 April 2022. Riverside – Hinsdale Chicago Subdivision Corridor.

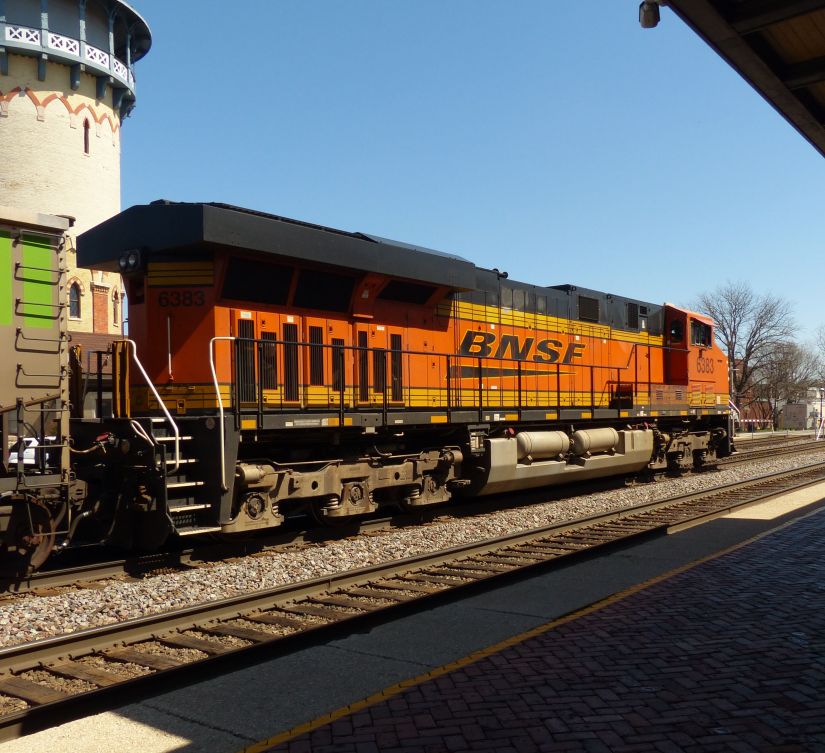

Lead Unit: BNSF #6383. Vantage points: Camera panning west to east. Clear corridor views, good visibility for signal aspects.

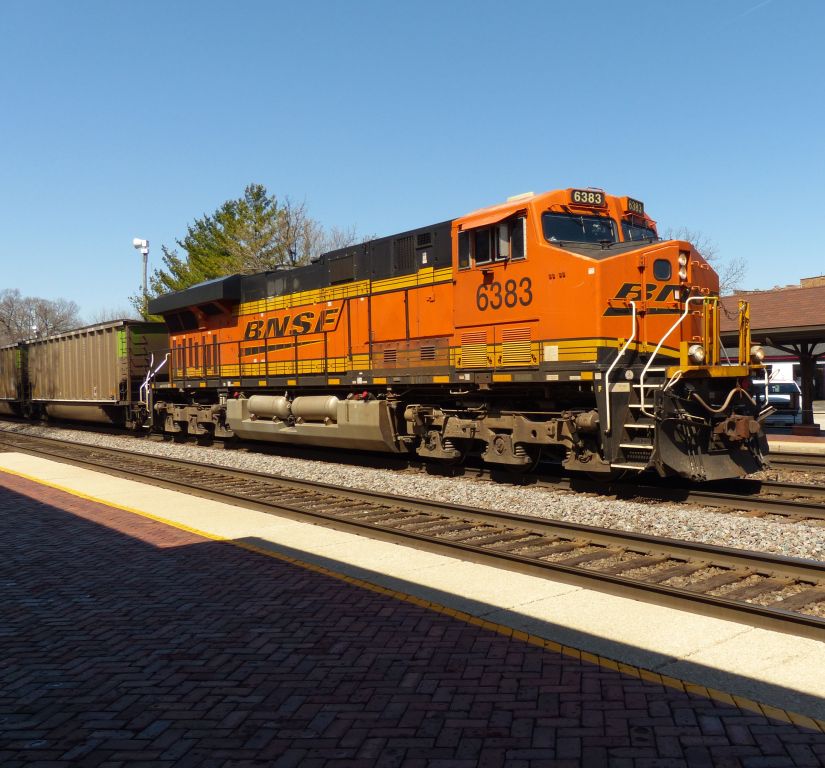

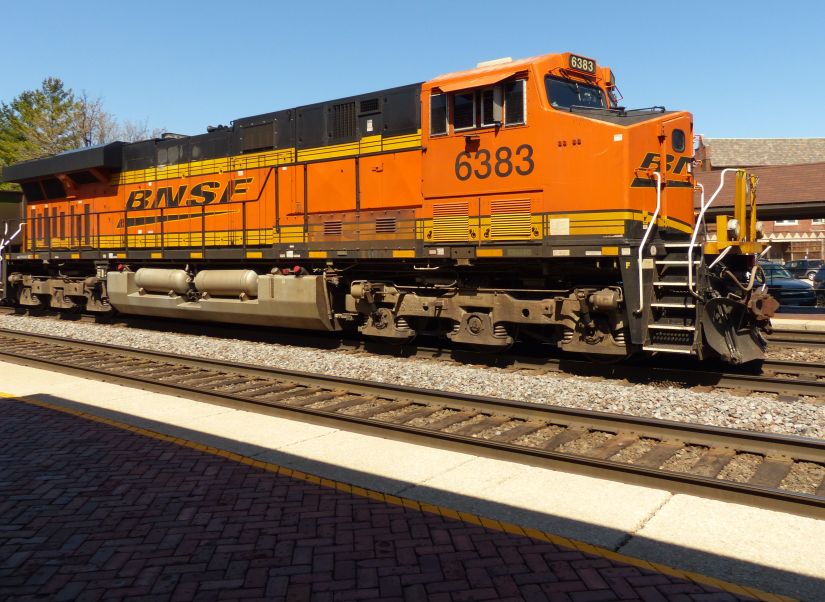

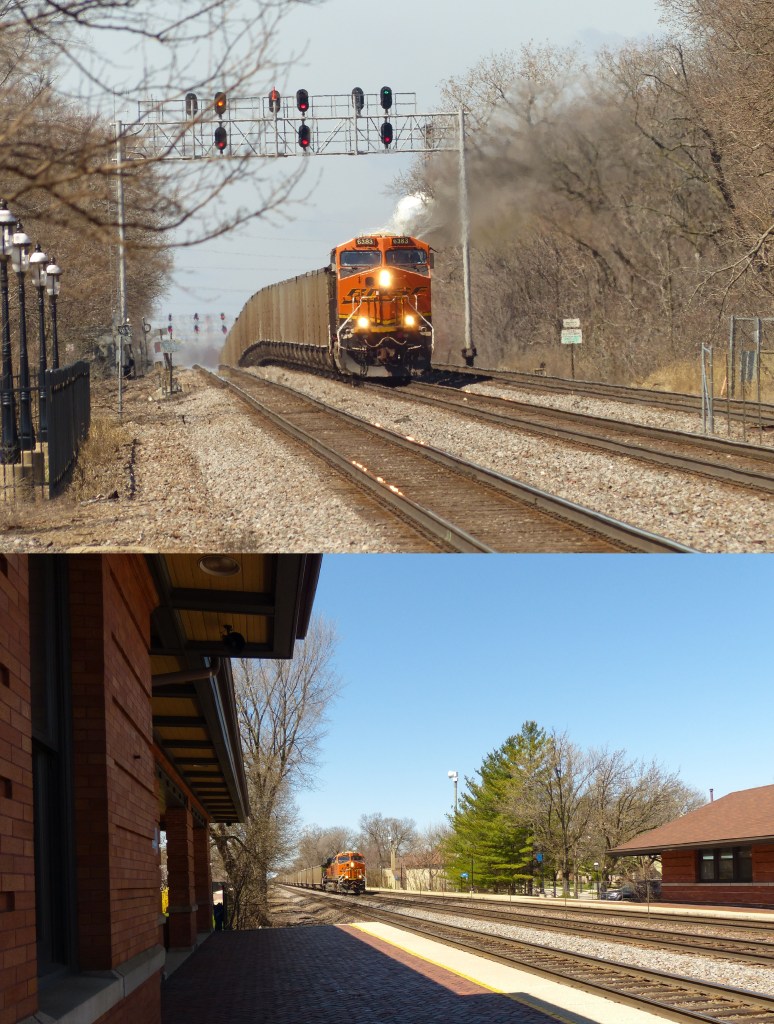

BNSF #6383 GE ES44AC

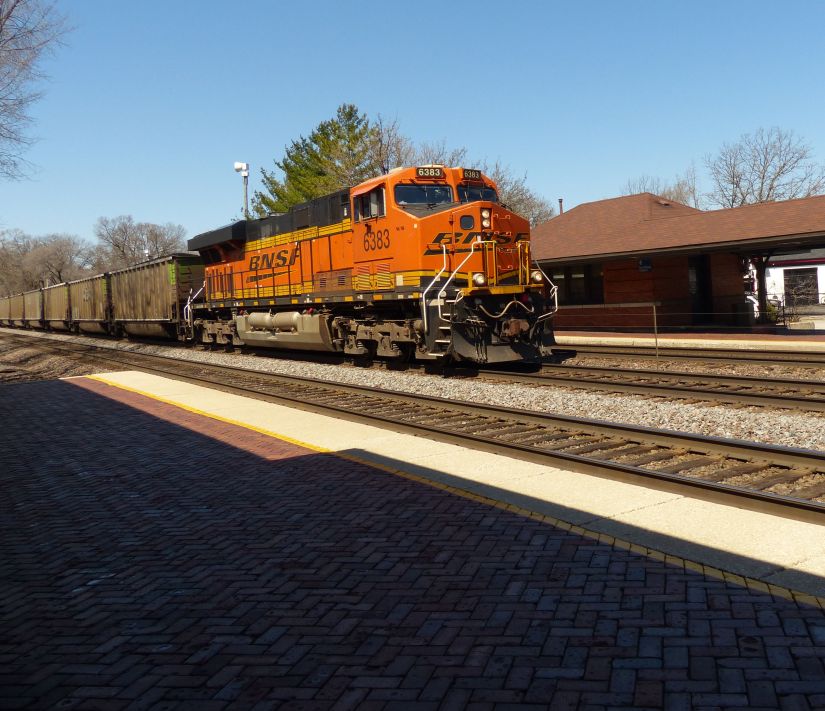

BNSF #6383, a GE ES44AC, leads an eastbound open hopper consist through Riverside, IL. 21 April 2022. Hoppers are the no-nonsense workhorses of the American cargo railcar fleet. GE ES44AC. Serial number: 59998. Order number: 1964-2. Built: 11/2009. Signal aspects: Triple-track system with Clear on Main 1, Stop on Main 2, and Approach on Main 3.

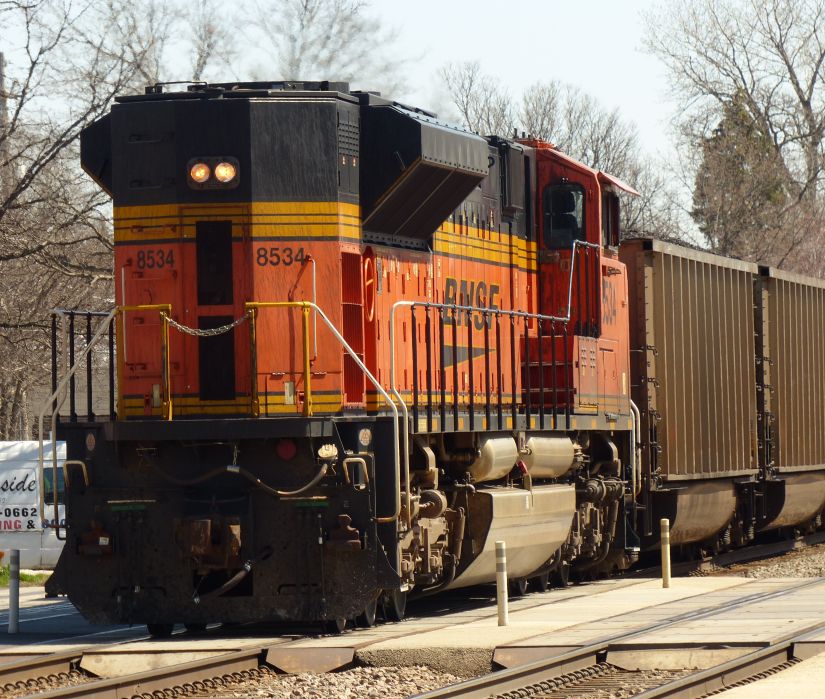

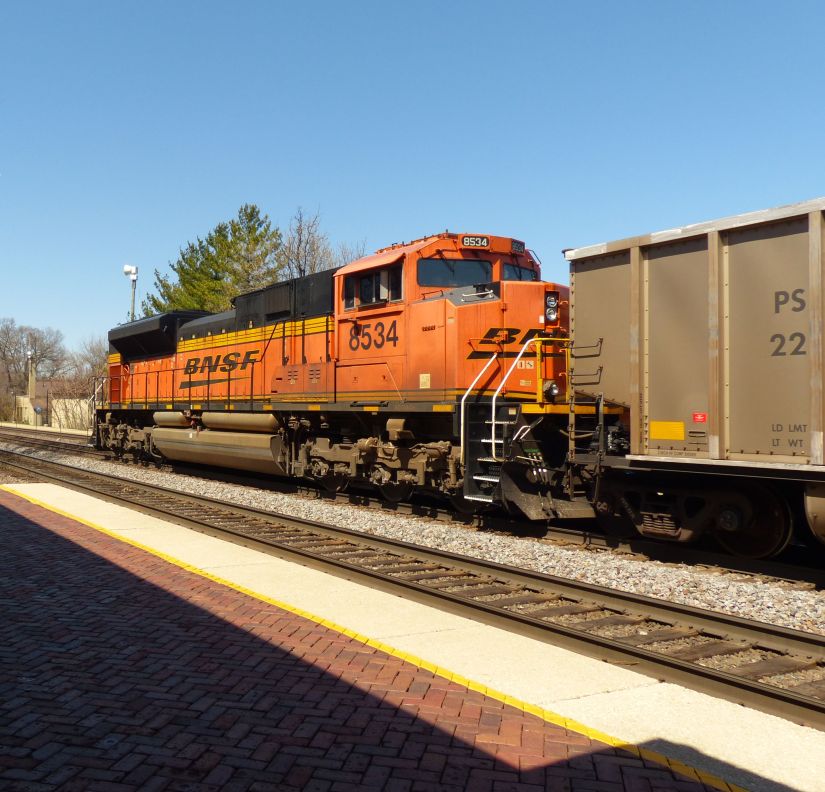

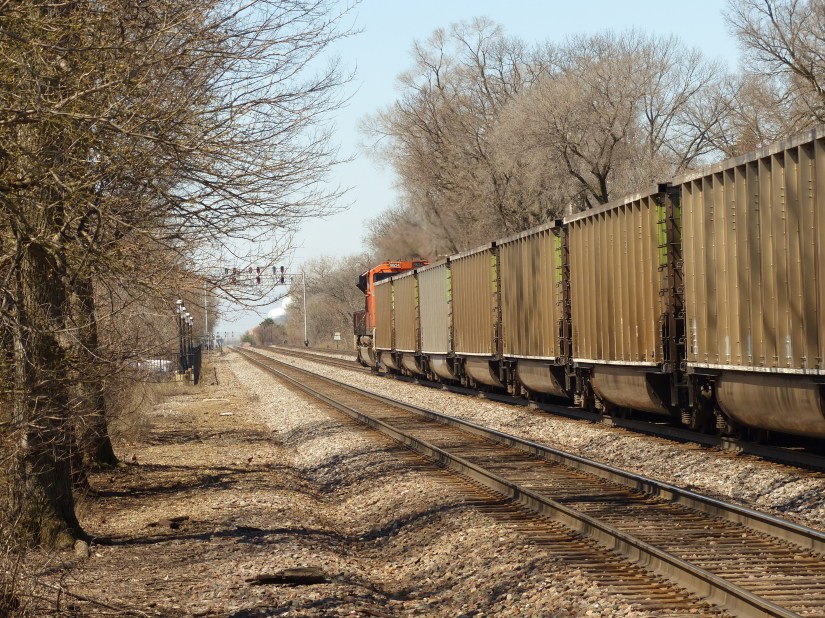

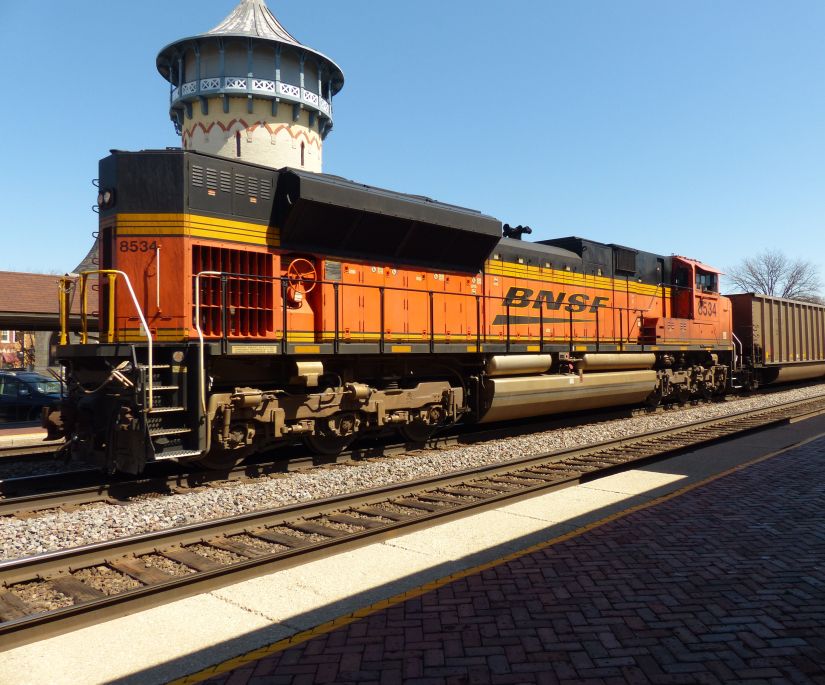

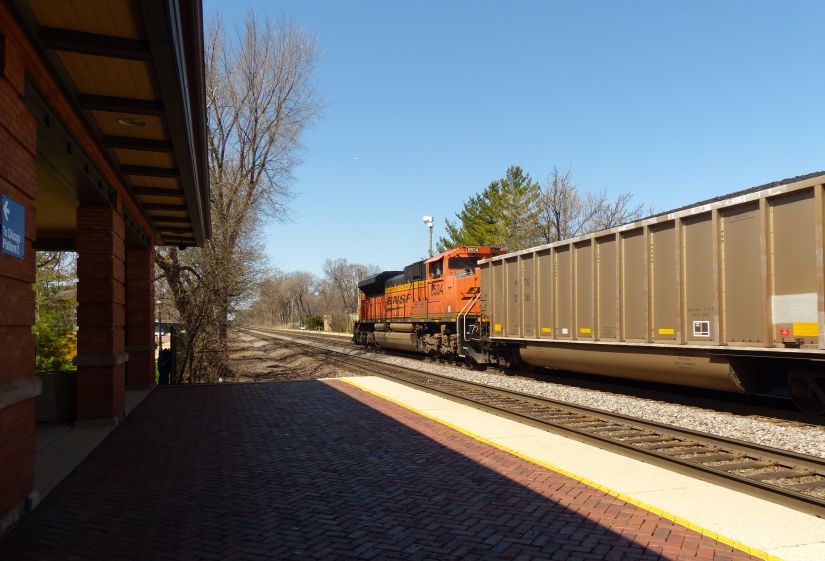

Trailing Unit: BNSF #8534

Locomotive specs: Model is an EMD SD70ACe. Serial number: 20136925-015. Builder: Electro Motive. Built: 04/2014

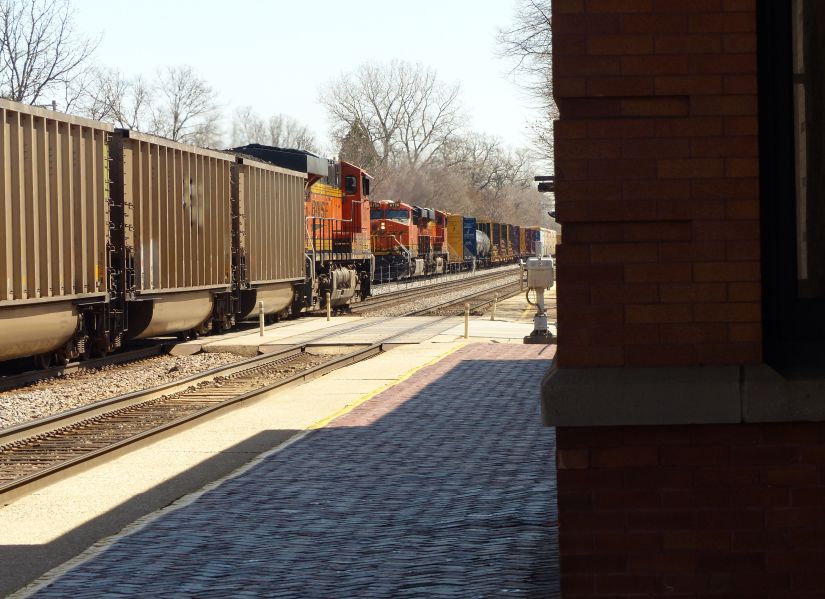

For this hopper consist, I learned about “meet logic”, how dispatchers stage train movements. This is how Copilot outlined it.

WESTBOUND FREIGHT (priority) → MAIN 1 → CLEAR
EASTBOUND HOPPER (held) → MAIN 2 → ABSOLUTE STOP
FUTURE / STAGED MOVEMENT → MAIN 3 → APPROACH

The Copilot module then went on to generate this corridor schematic. It also gave pointers on how to read a triple-track system signal bridge, and BNSF/GCOR (General Code of Operating Rules).

WEST (Hinsdale) EAST (Berwyn/Chicago)

  ← Westbound freight on MAIN 1 (priority)
  [CLEAR signal at Riverside Road on MAIN 1]

———————- MAIN 1 ———————-> (WB direction)
———————- MAIN 2 ———————-> (EB direction)
———————- MAIN 3 ———————-> (EB direction)

                [SIGNAL BRIDGE]
             (Riverside Road Crossing)

MAIN 1: GREEN / RED → Westbound freight passes
MAIN 2: RED / RED → BNSF 6383 approaching, held by absolute
MAIN 3: YELLOW/ RED → No train present, Approach set for future use

  → Eastbound hopper (BNSF 6383) on MAIN 2
  (Cresting hill, still under previous block authority)

3. Westbound Open Hopper Consist. Riverside, IL. 1 November 2022.

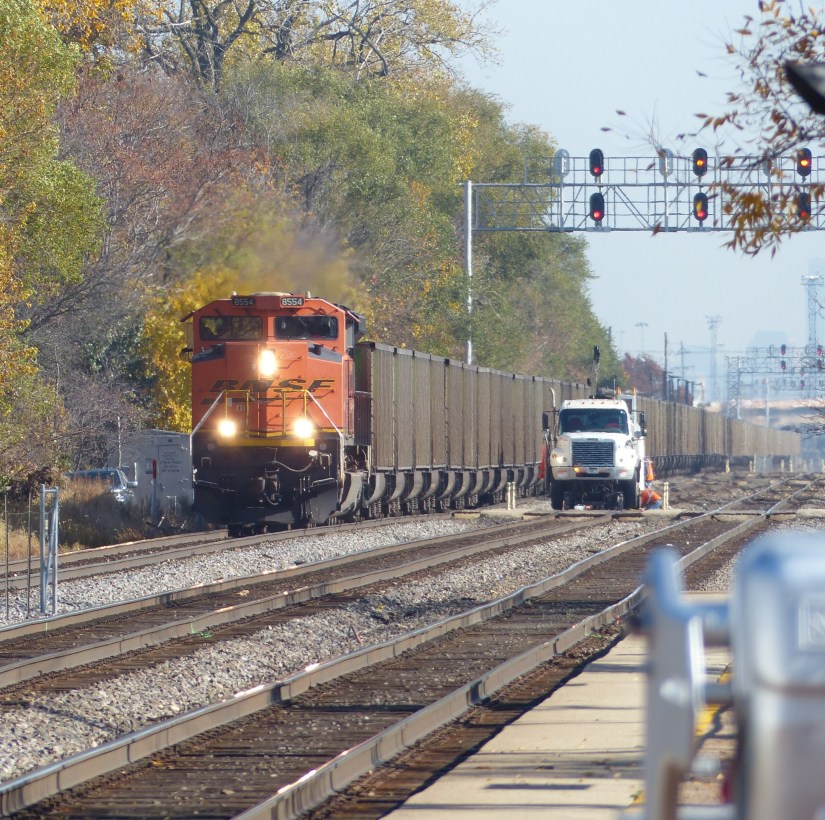

Lead Unit: BNSF ACe #8554. Vantage points: Camera panning east to west. Clear signal aspects. Track work on Main 2.

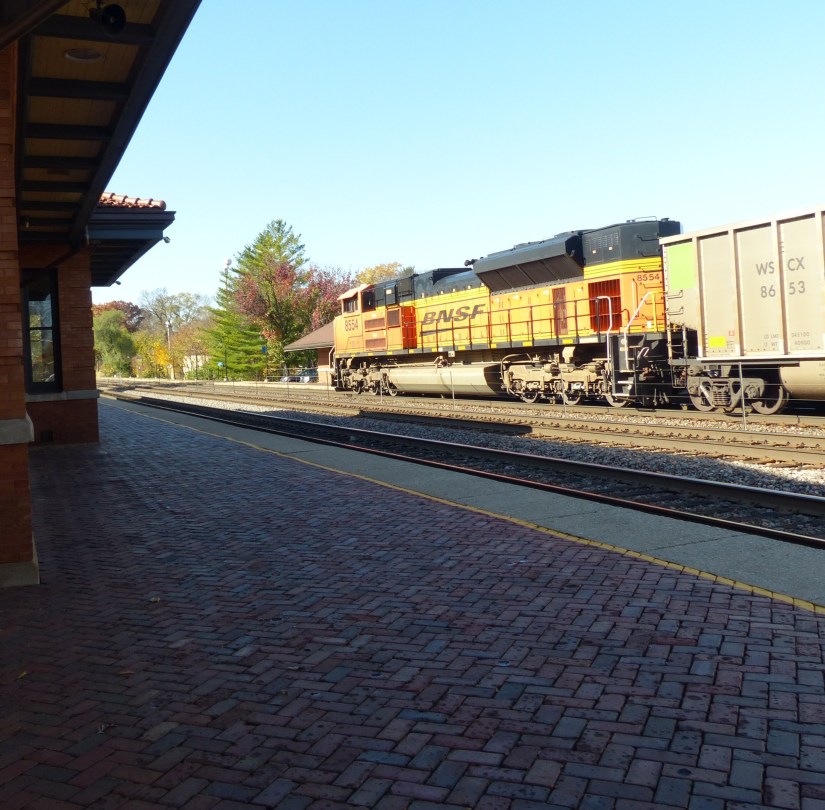

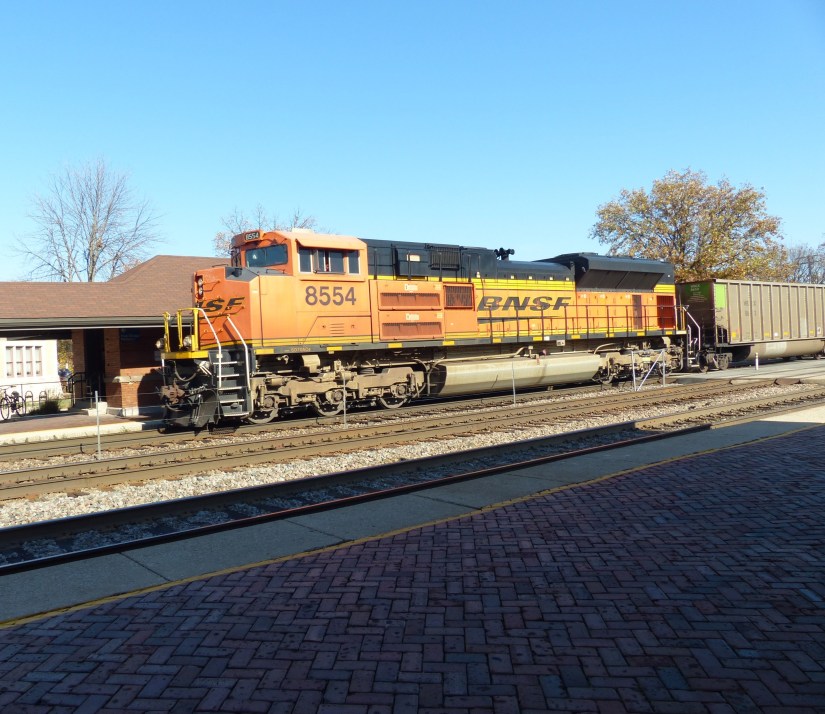

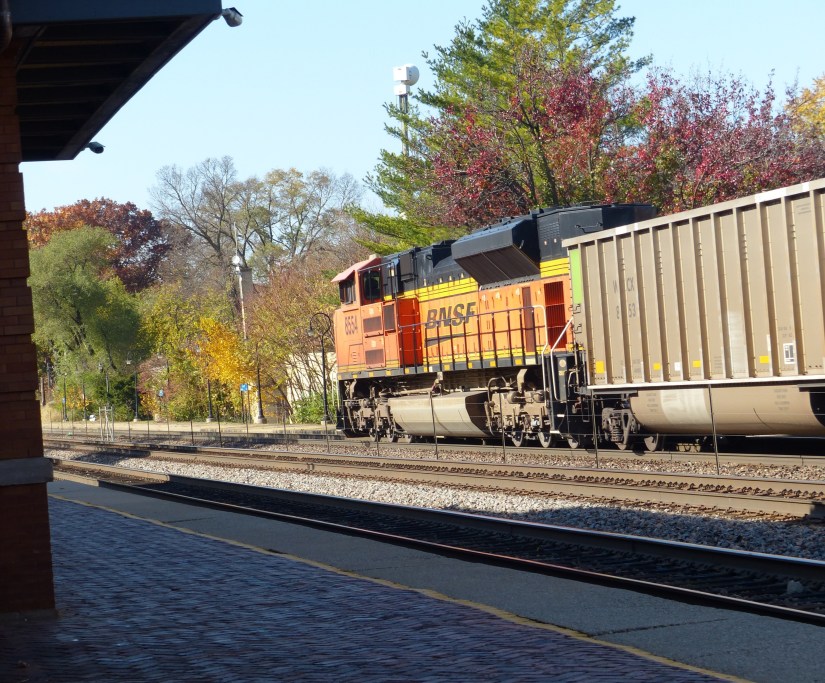

Vantage points east to west of lead unit BNSF #8554 as it leads the hopper consist past station buildings in Riverside, IL. 1 November 2022. Locomotive specs: Model is an EMD SD70ACe. Electro-Motive Diesel. Serial and frame number: 20136925-035. Built: 2014.

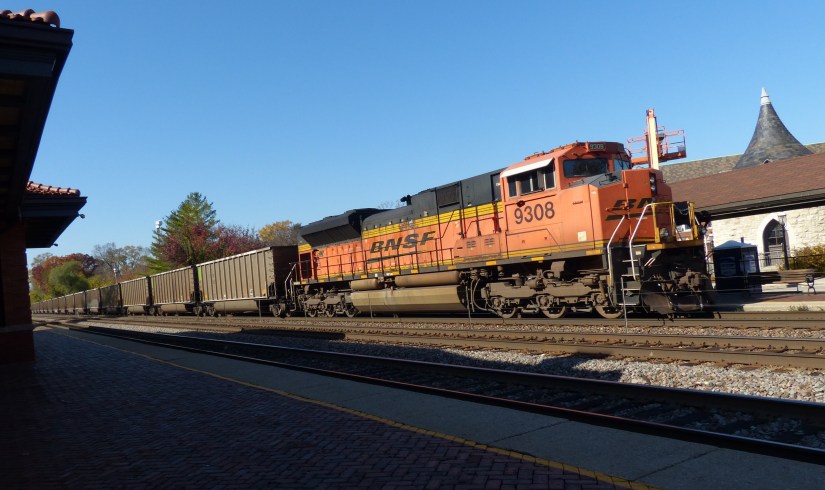

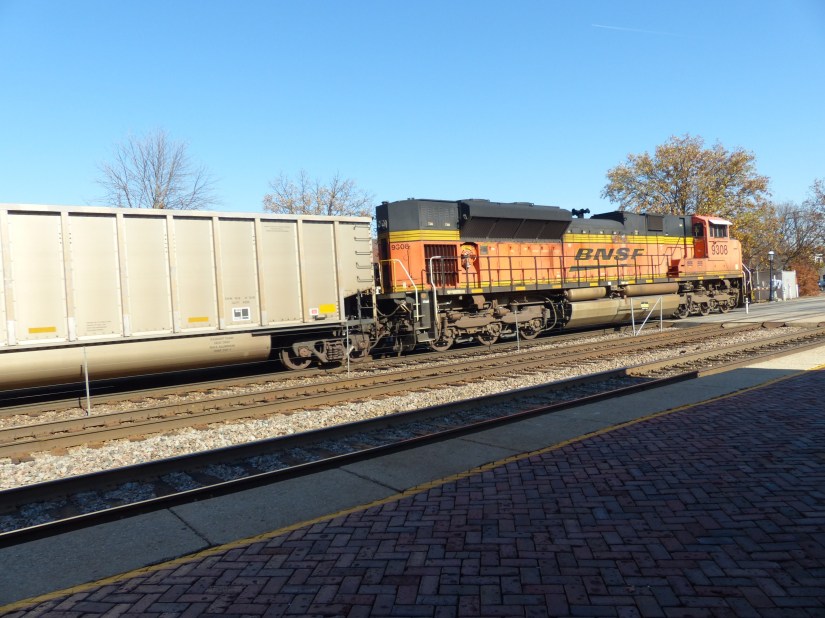

Trailing Unit DPU: BNSF ACe #9308.

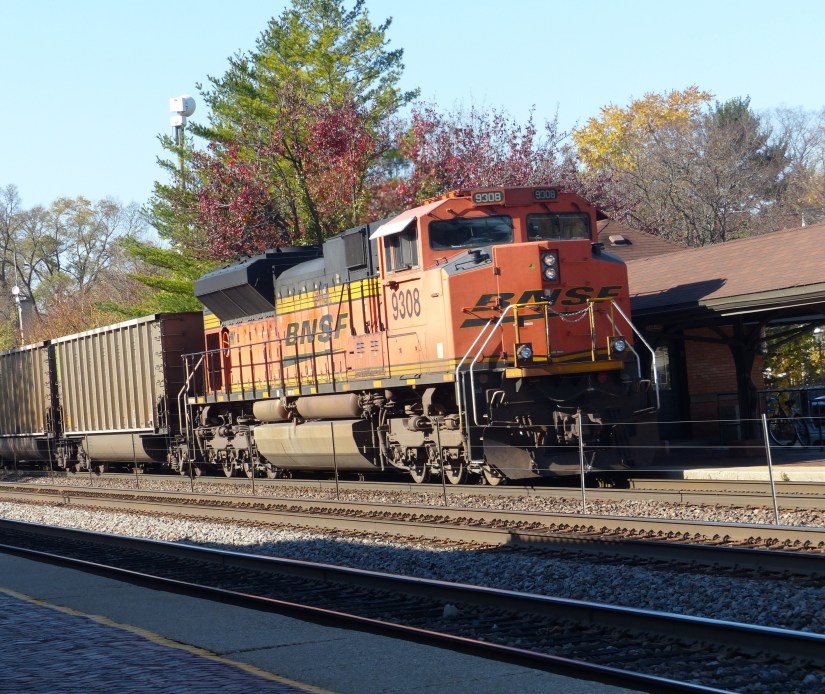

BNSF ACe #9308 is the end DPU for the westbound hopper consist. Model: EMD SD70ACe. Serial and frame number: #20086021-004. Order number: 20086021. Built: 02/2009.

Here is a roster tile generated by Copilot AI> It includes: Integrated Provenance Tag (First Appearance: 30 June 2014).

──────────────────────────────────────────────────────────────
BNSF SD70ACe #8554 — Visual Roster Tile
──────────────────────────────────────────────────────────────

ROAD NUMBER: BNSF 8554
MODEL: EMD SD70ACe
RAILROAD: BNSF Railway
LIVERY: Heritage 3
BUILD YEAR: 2014 (Confirmed)

FIRST APPEARANCE (PROVENANCE):
• 30 June 2014 — Galesburg, IL
• Captioned “NEW ACe!!! – First photo of this ACe on rrpicturearchives.net.”
• Photographer: Matthew Schimmel
• Source: RRPictureArchives.net

ROLE IN OBSERVATION:
• Lead unit on westbound open‑hopper consist
• Date: 1 November 2022
• Location: Riverside METRA Station — Platform 2 (South Platform)
• Approaching Cowley Road (ENS 079497N) on Main 1

NOTES:
• Signal aspect at time of observation: Red over Red (Main 1)
• Track crew present on Main 2 (Yellow over Red)
• Main 3 also Yellow over Red
• Hopper consist continuous and uniform
──────────────────────────────────────────────────────────────

Following are glossaries and resources. These were generated with the help of Copilot Smart AI.

Corridor‑Grade Glossary for New Readers

Riverside–Hinsdale Master Index — Reference Module

This glossary introduces the essential terms used throughout the corridor schematics, timeline bars, consist entries, and movement narratives in the Riverside–Hinsdale documentation. It is designed for readers who may be new to railroad operations, GCOR terminology, or corridor‑mapping conventions.

A. Signal & Aspect Terminology

Aspect

The visual indication displayed by a signal head (e.g., Red over Red, Yellow over Red). Aspects govern train movement and communicate track conditions ahead.

Red over Red

An absolute stop indication for opposing movements. When a train is already occupying the block, this aspect governs only the other direction.

Yellow over Red

Advance Approach. Warns the engineer that the next signal may require reduced speed or a stop. Common when maintenance crews or other restrictions are present.

Signal Gantry

An overhead bridge supporting multiple signal heads, one for each main track. At Riverside, the Cowley Road gantry governs Main 1, Main 2, and Main 3.

Signal Bungalow

A trackside equipment cabinet housing the circuitry for a grade crossing or signal system. Identified by an ENS ID.

B. Track & Corridor Structure

Main 1 / Main 2 / Main 3

The three parallel tracks of the BNSF Chicago Subdivision through Riverside and Hinsdale.

  • Main 1: Typically northernmost
  • Main 2: Center track
  • Main 3: Southernmost

Triple‑Track Territory

A corridor with three main tracks, allowing simultaneous movements in multiple directions. Requires precise signal logic and block management.

Block

A defined section of track governed by signals. Only one train may occupy a block at a time.

  • When the lead unit passes a signal, it enters a new block.
  • The DPU may be in a different block entirely.

Downstream / Upstream

Directional terms relative to train movement.

  • Downstream: Further along the direction of travel
  • Upstream: Behind the train, toward the approach

C. Train Composition & Power Roles

Lead Unit

The locomotive at the front of the consist. Responsible for receiving and obeying signal indications.

DPU (Distributed Power Unit)

A locomotive placed mid‑train or at the rear, remotely controlled from the lead unit.

  • End DPU: A DPU positioned at the very end of the train (e.g., BNSF #9308).

Consist

The full makeup of a train: locomotives + cars. In your 1 Nov 2022 observation, the consist is a long string of open hoppers.

Hopper Consist

A train composed of open or covered hopper cars, typically used for bulk commodities (grain, aggregates, minerals).

D. Crossing & Identification Codes

ENS ID (Emergency Notification System ID)

A unique identifier assigned to every grade crossing in the United States. Examples in your corridor:

  • 079497N — Cowley Road
  • 079498V — Riverside Road

These IDs appear on blue signs at crossings and in FRA databases.

Grade Crossing

A location where a roadway intersects railroad tracks. In your corridor: Cowley Road and Riverside Road.

E. Observation & Documentation Terms

Vantage Point

The observer’s physical position relative to the train and corridor. Examples:

  • East‑to‑west vantage for DPU #9308
  • Platform 2 (South Platform) for lead‑unit #8554

Corridor Schematic

A simplified, geographically accurate diagram showing track alignment, crossings, signal locations, and train positions.

Timeline Bar

A linear representation showing the temporal sequence of the lead unit, consist, and DPU as they move through the corridor.

Movement Narrative

A written description tying together the consist, signal logic, environmental context, and infrastructure interactions.

F. Environmental & Operational Context

Autumn Lighting

Clear, crisp visibility typical of late‑season observations. Important for photographic clarity and signal‑aspect confirmation.

Track Crew Zone

A maintenance area where workers are present. Often associated with Yellow over Red aspects on adjacent tracks.

Station Infrastructure

Includes platforms, canopies, and buildings used as fixed reference points for vantage alignment.

G. Provenance & Roster Documentation

Provenance Tag

A note indicating the earliest known appearance or confirmed build information for a locomotive. Example:

  • BNSF 8554 — First appearance 30 June 2014 (“NEW ACe!!!”)

Roster Tile

A compact metadata block summarizing a locomotive’s identity, build year, livery, and role in a documented movement.
