The EMD SD70ACe: My Favorite Locomotive. Architectural Style and Symmetrical Design Makes the ACe Distinctive. Part One: Burlington Northern Santa Fe, Ferromex, and Kansas City Southern ACes.

Article and photographs by Divi Logan.

Introduction: The ACe Element. Design Differences Draw Attention to the Specifications of the EMD SD70ACe.

The designation EMD SD70ACe means: EMD (Electro-Motive Diesel, the builder); SD means Special Duty, indicating that it is a six-axle locomotive; 70 denotes the series of locomotives that appeared in the 1990s; AC means it has AC traction, and the e is for enhanced features, first used in 2005.

The nose design of the ACe reminds me of architecture, like the keystone of an arch. It is a design that sets it apart from other locomotives, just as an element of ornamentation sets a building entrance apart from another.

BNSF ACe #8508

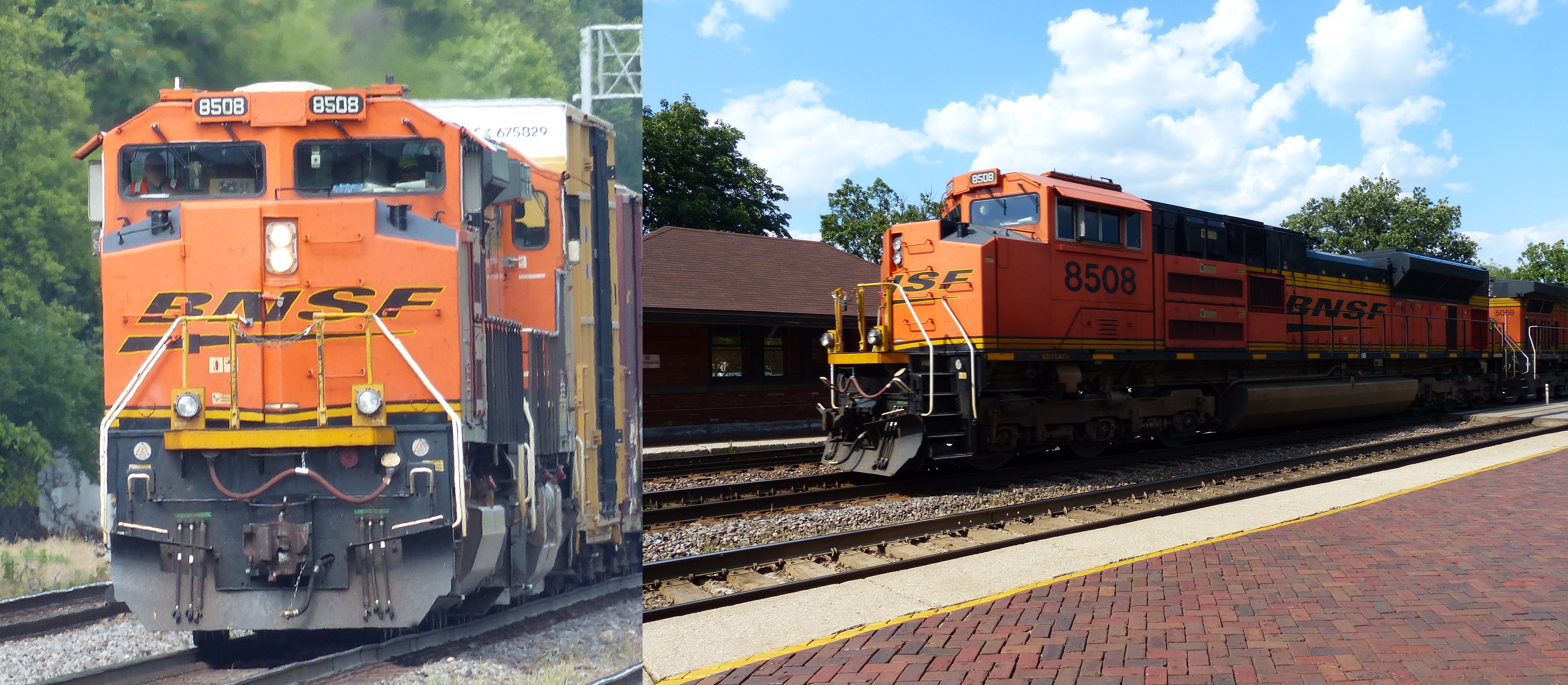

BNSF ACe #8508 is shown in two views as it leads a mixed freight consist westbound through Riverside, Illinois. The vertical aspect and geometrically symmetrical nose design stand out as it approaches the crossing at Riverside Road. 28 June 2022.

Known for its environmentally friendly design and geometrically distinct nose shape, the ACe meets Tier 4 emissions regulations and includes more technological advances than the SD70MAC. The nose shape is defined by taller side walls just over five feet in height and the compounded-angled nose top. The reasons for the design changes over earlier SD70 models are:

  • Improve crashworthiness
  • Meet updated FRA safety standards
  • Integrate with the new, more upright cab front
  • Accommodate revised electronics and HVAC systems

II. The Gallery: ACes by Railroad Company.

BNSF ACes

BNSF ACe #8413

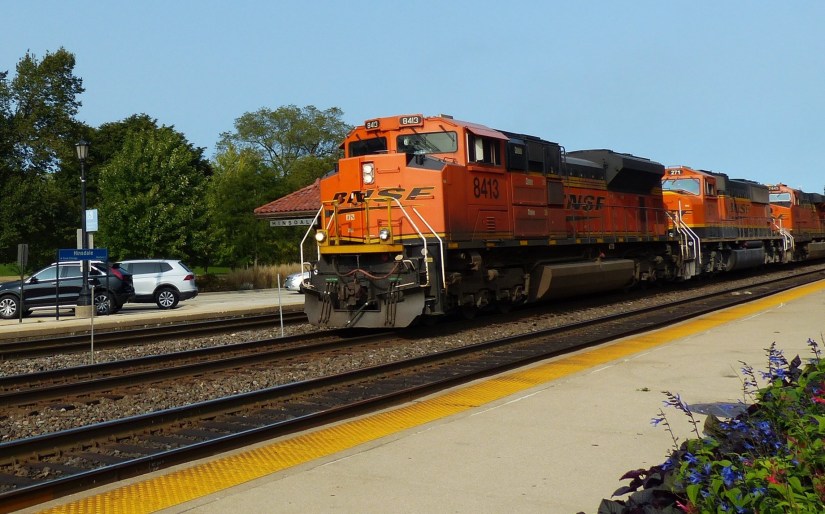

BNSF ACe #8413 leads a westbound consist through Hinsdale, Illinois. 17 September 2020.
BNSF ACe #8419

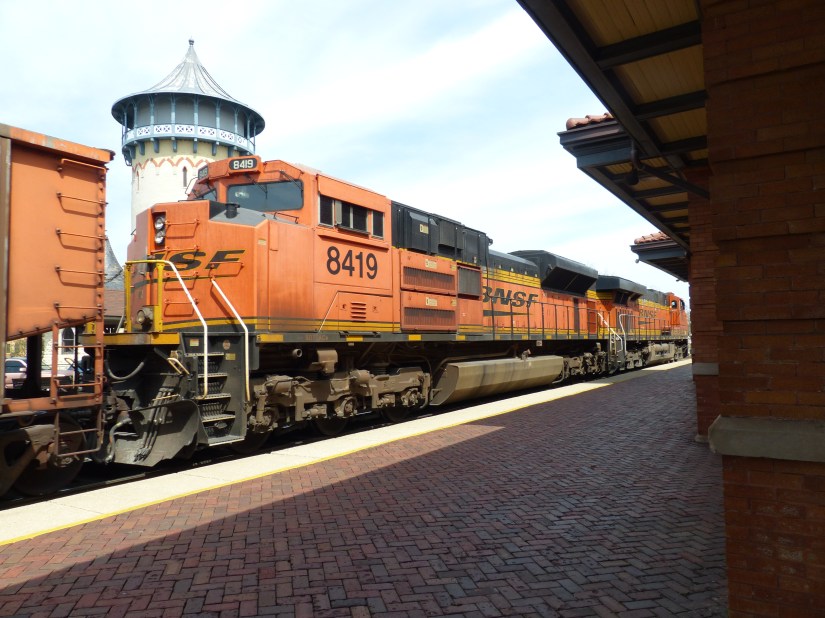

BNSF ACe #8419 is second in this locomotive consist heading eastbound through Riverside, Illinois. 10 April 2024.
BNSF #8433, EMD SD70ACe

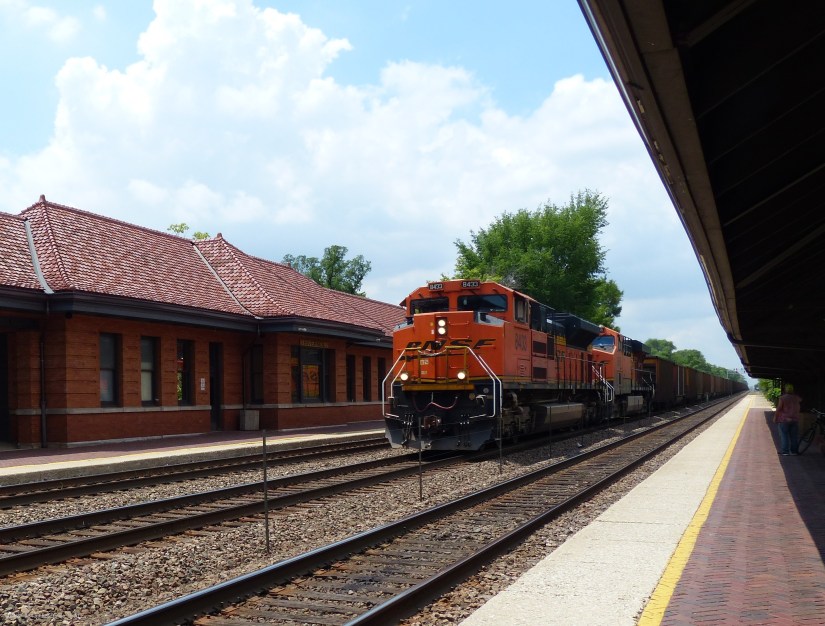

BNSF EMD SD70ACe #8433 leads a hopper consist eastbound through Riverside, Illinois. 8 June 2021.
BNSF ACe #8433

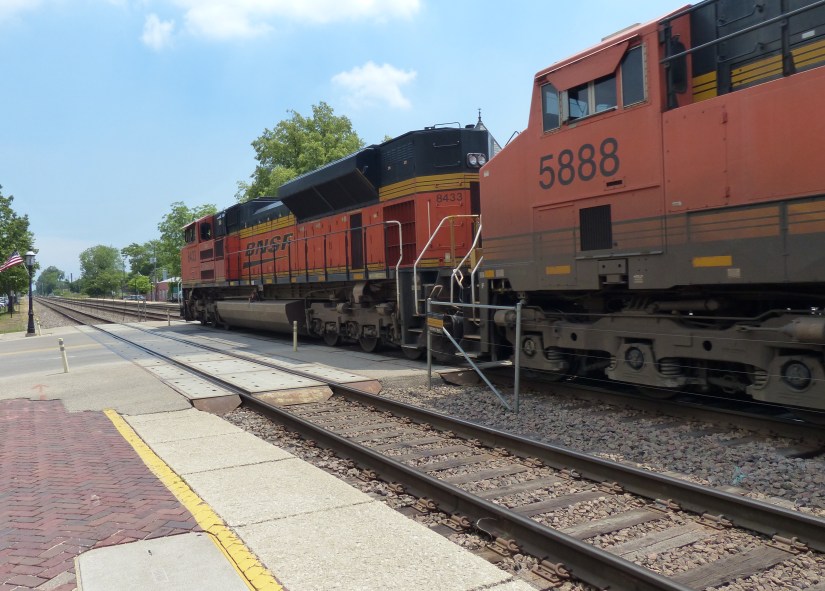

BNSF ACe #8433 leads an eastbound consist through Riverside, IL. 8 June 2021. Photo location: Platform 1 (North Platform). Riverside METRA Station.
BNSF ACe #8345

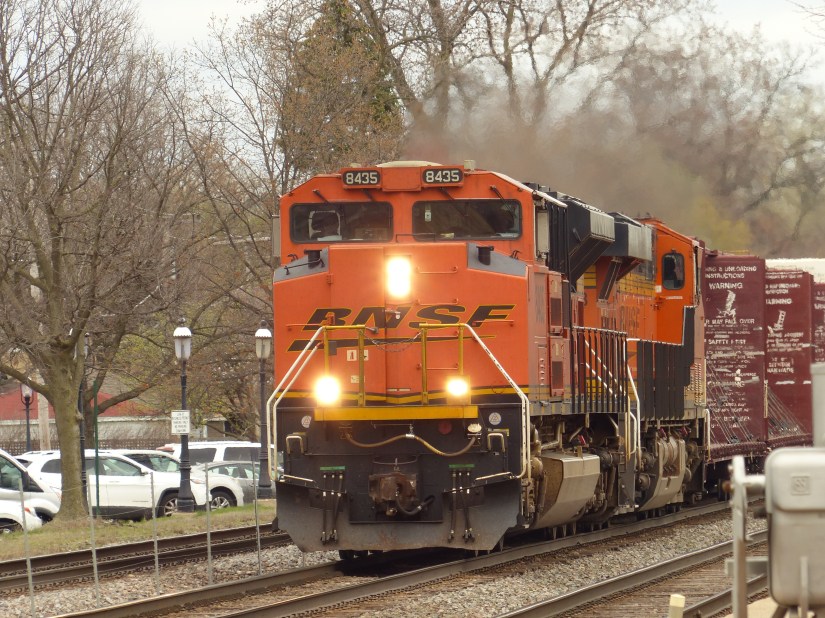

BNSF ACe #8435 leads a westbound mixed freight consist through Riverside, IL. 26 April 2022. The rectangular windows in the ACe are a design feature retained from the SD70M-2 locomotive. Medium telephoto.
BNSF ACe #8448

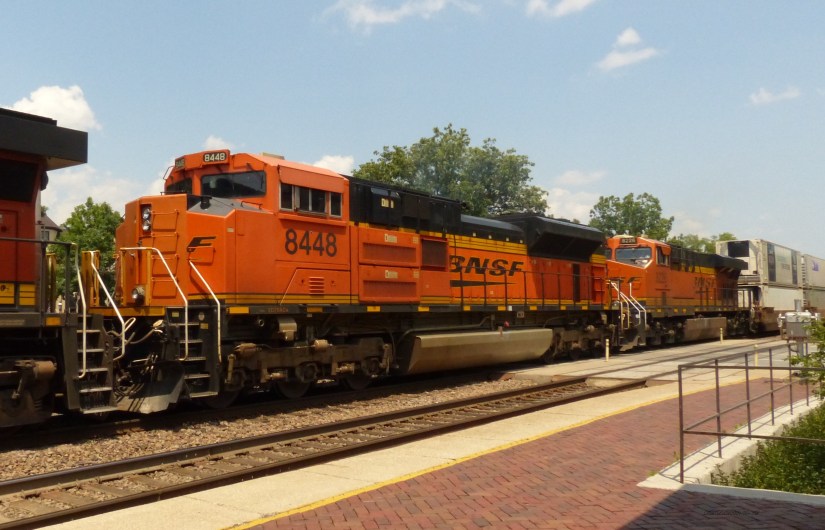

BNSF ACe #8448 is part of a westbound consist through Riverside, IL. 10 October 2022.
BNSF ACe #8538

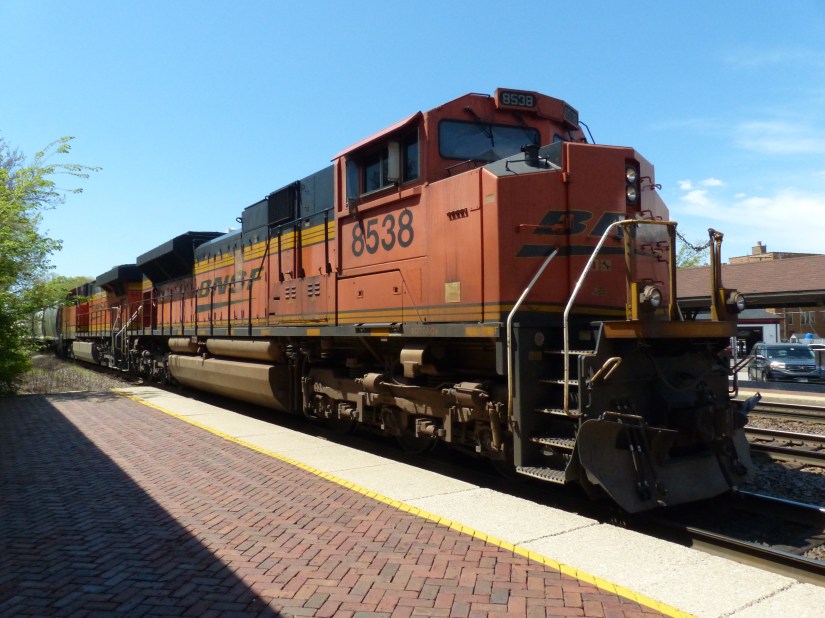

BNSF ACe #8538 holds at the station in Riverside, Illinois. The engineer waited for a priority westbound consist to come out of the Cicero Yard. 1 May 2024. ** The photo was taken with permission of the engineer. Never cross in front of a stopped train and never touch rolling stock. It is railroad property. Had this train been moving, I would not have come this close to the locomotive. Note that I am behind the platform’s yellow safety line. **
BNSF ACe #8566 Side View

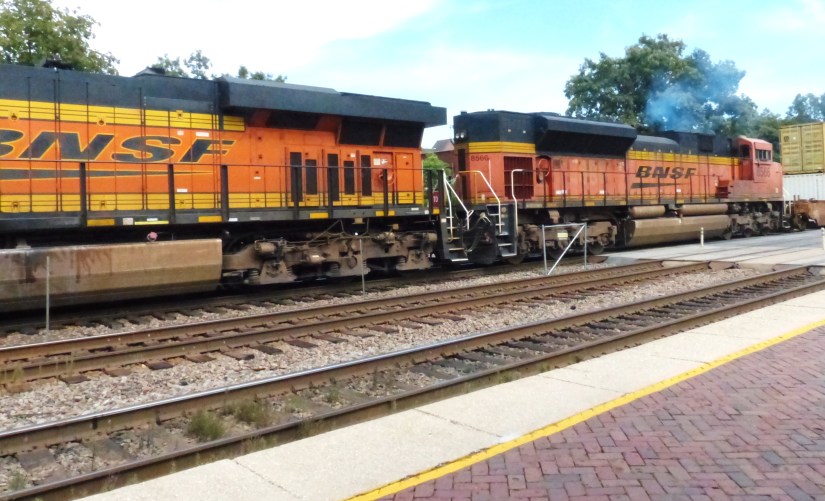

A side view is shown of BNSF ACe #8566, third unit in this locomotive consist heading westbound in Riverside, Illinois. 13 September 2024.
BNSF ACe #8566

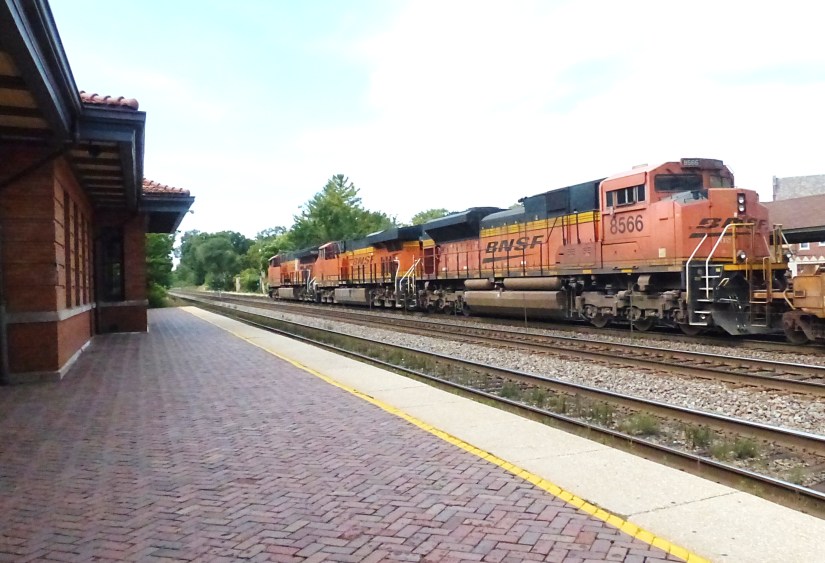

BNSF ACe #8566 is third unit in this locomotive consist heading westbound in Riverside, Illinois. 13 September 2024.
BNSF ACe #8764

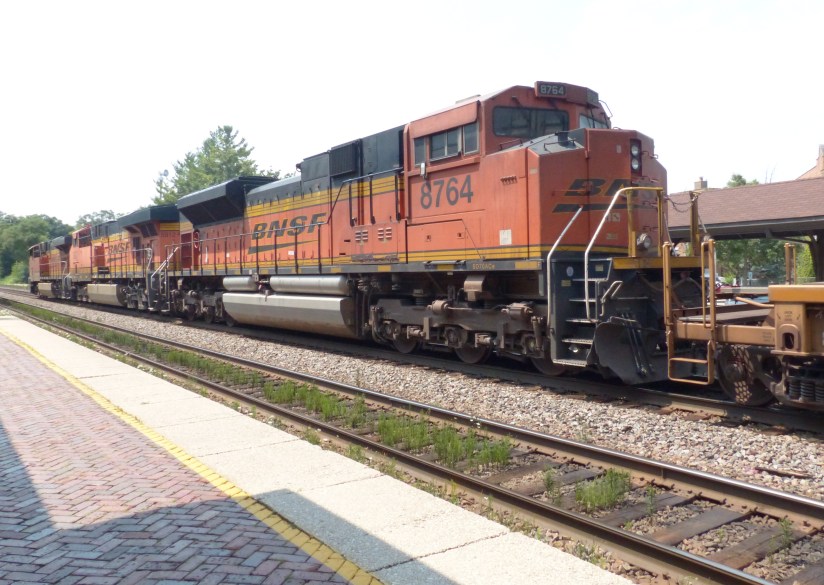

BNSF ACe #8764 is third in the locomotive consist rolling westbound through Riverside, Illinois. 30 July 2024.
BNSF ACe #9066 and BNSF ACe #8782

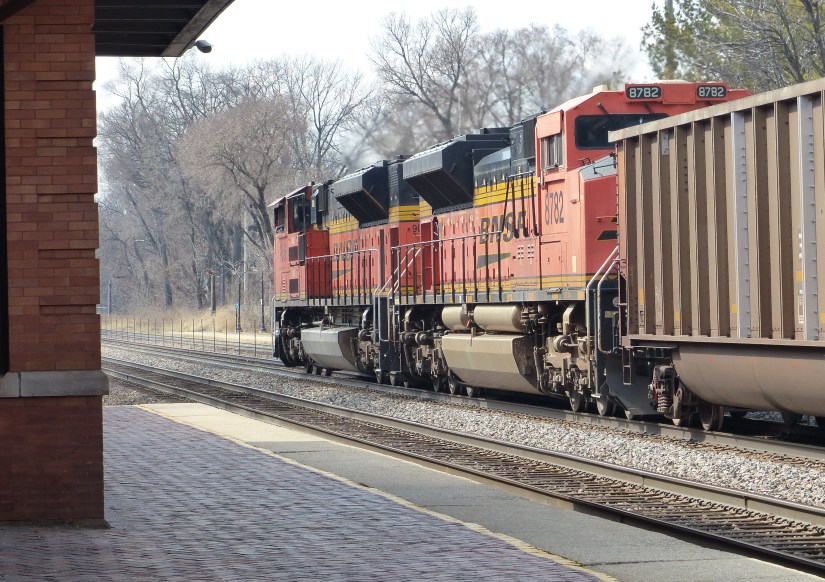

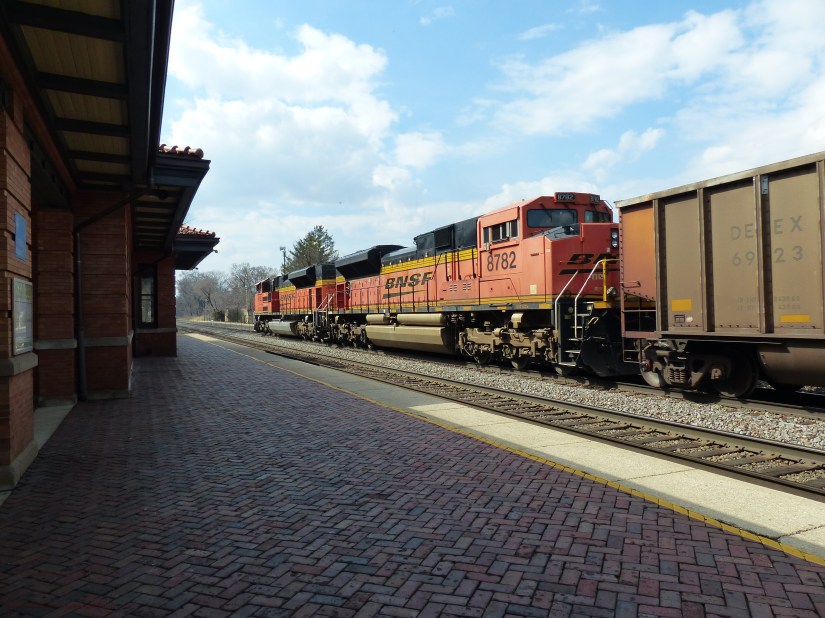

BNSF ACe #8782 is the second unit in a westbound hopper consist through Riverside, IL. 16 March 2022.
BNSF ACe #9014

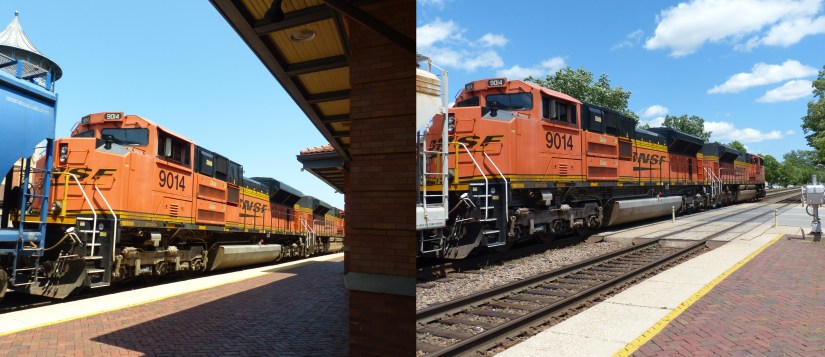

On two occasions in May 04 2024, BNSF ACe #9014 is second in an eastbound locomotive consist through Riverside, Illinois. Left photo: 15 May 2024. Right photo: 22 May 2024.
BNSF ACe #9027

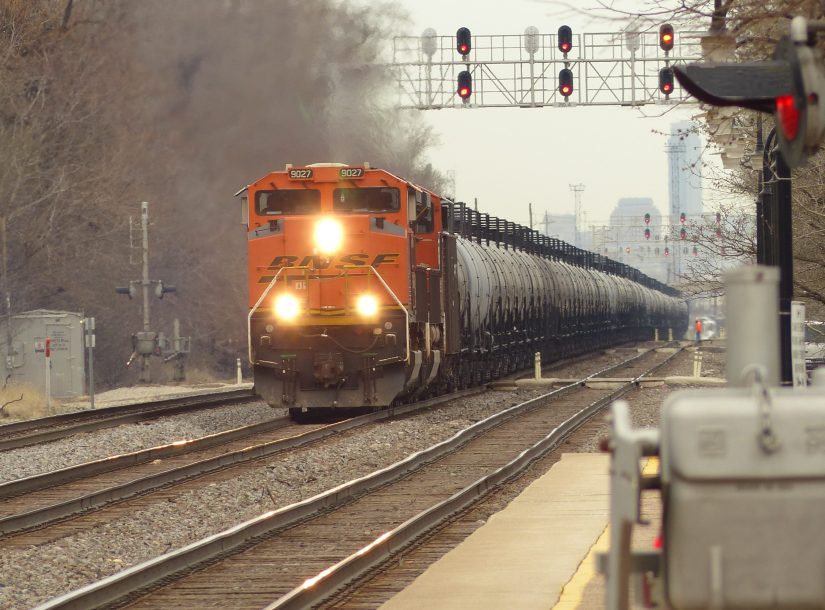

BNSF ACe #9027 leads a westbound tanker consist through Riverside, IL. Trailing unit: BNSF ACe #9256, The signal bungalow is on the northeast corner at Cowley Rd, ENS Crossing ID: 079497N. Medium telephoto. 12 April 2022. Signal gantries disappear in the distance looking east towards the Cicero Yard.

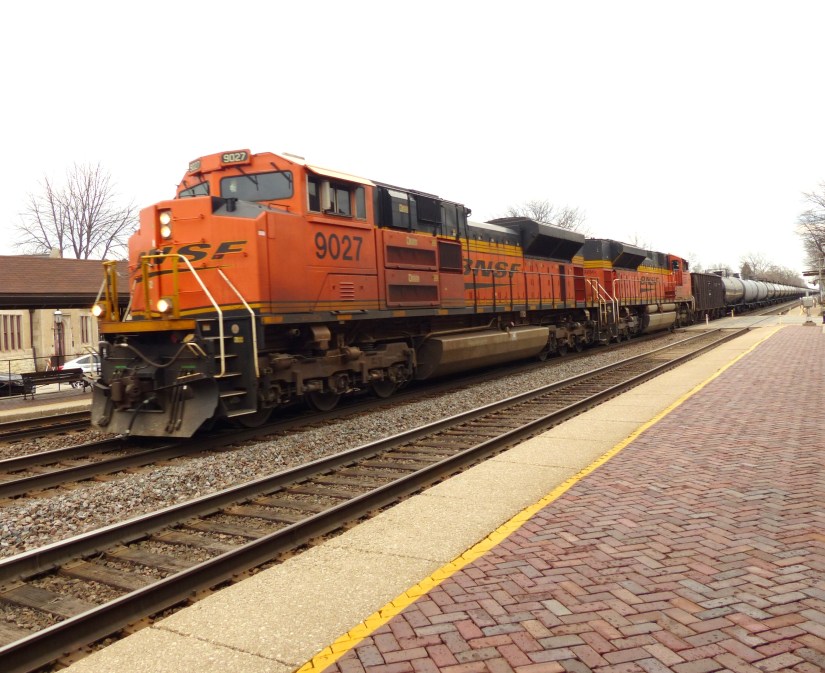

BNSF #9027 leads the westbound tanker consist as it crosses Riverside Road between structures at the Riverside METRA Station.
BNSF ACe #9256

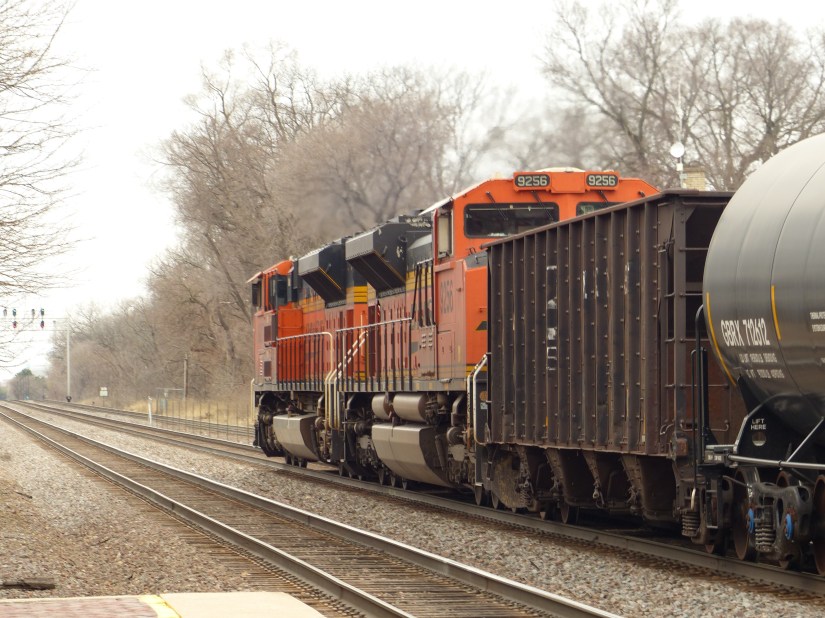

BNSF ACe #9256 trails BNSF ACe #9027 for a tanker consist westbound through Riverside, IL. 12 April 2022. Wide- angle. Signal aspects: Green over red on Main 2 facing westbound. This means the train is cleared to proceed as the maximum authorized speed. The route ahead is lined and unoccupied.
BNSF ACe #9066

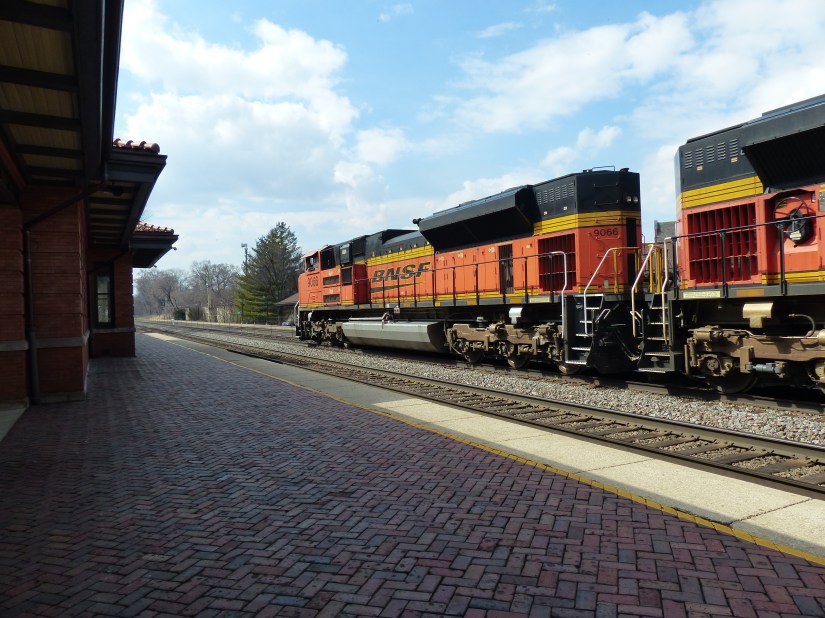

BNSF ACe #9066 leads this consist westbound through Riverside, Illinois. 16 March 2022.
BNSF ACe #9066

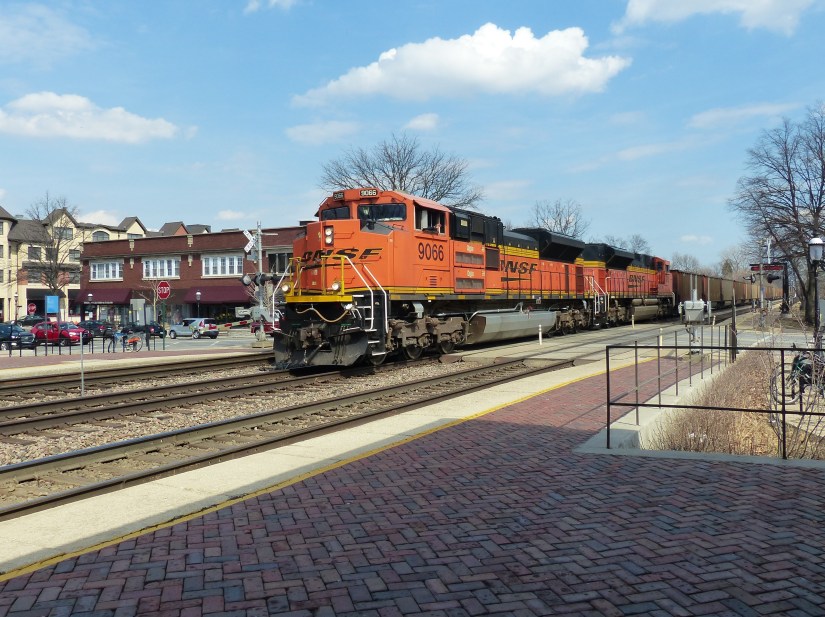

BNSF ACe #9066 leads a westbound hopper consist through Riverside, IL. 16 March 2022.
BNSF ACe #9267

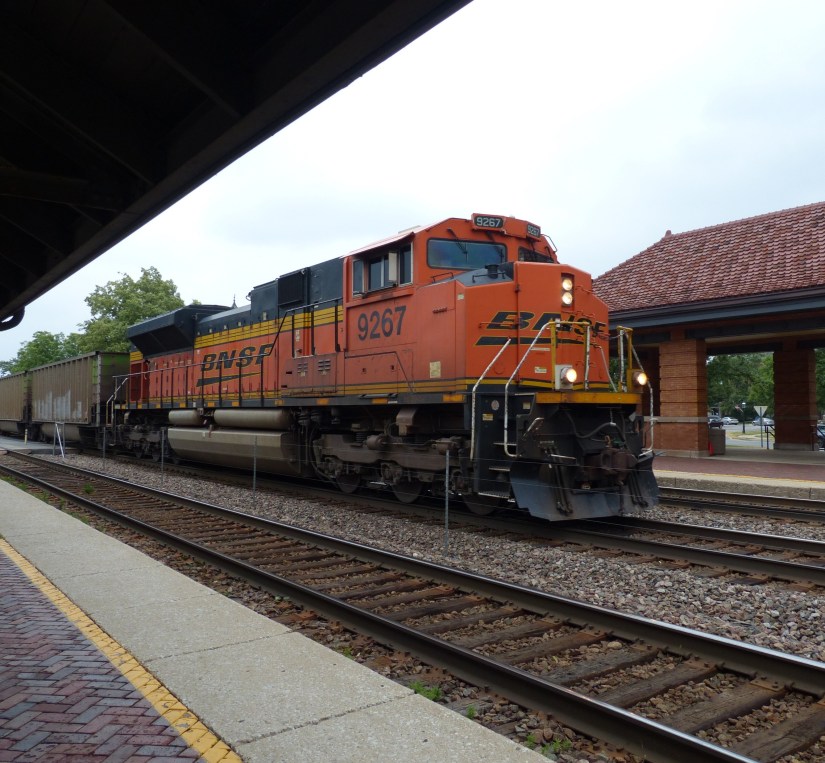

BNSF ACe #9267 leads a westbound hopper consist through Riverside, Illinois. 26 June 2023.

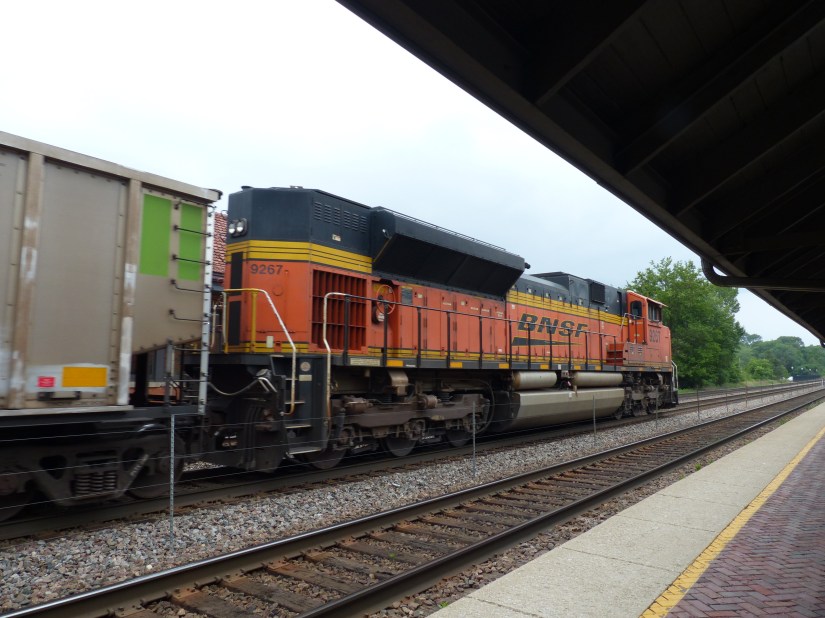

BNSF ACe #9267. Right side hood angle with H3 livery.
BNSF ACe #9269

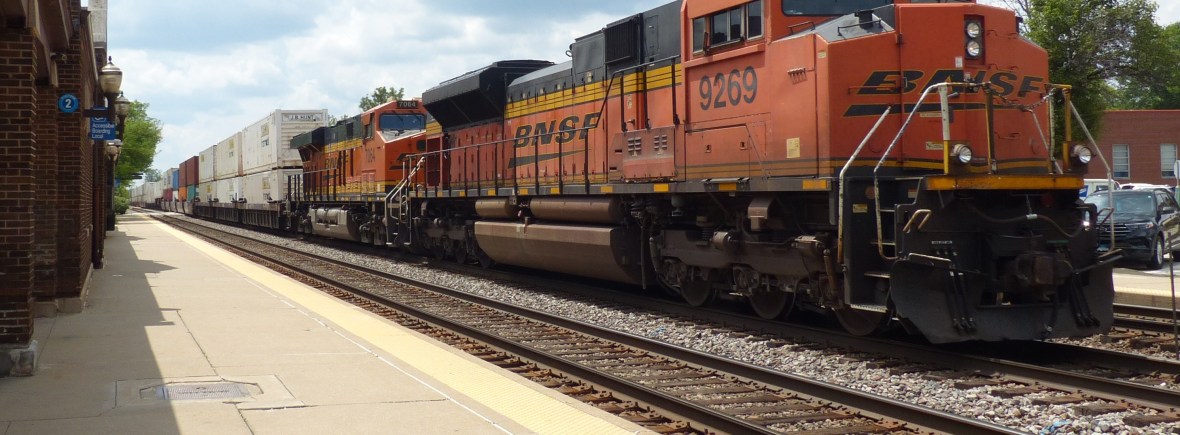

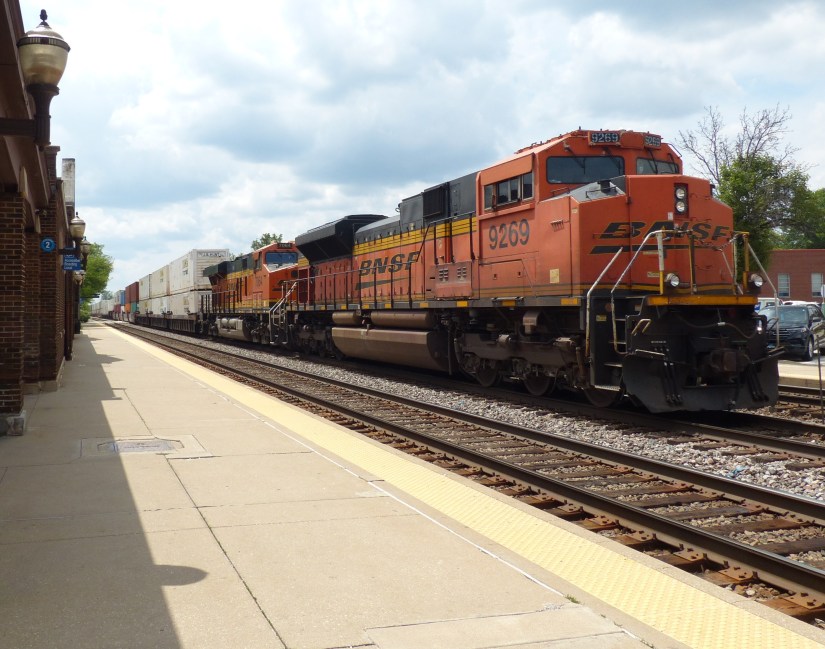

BNSF ACe #9269 is the end DPU, or distributed power unit. Stands for Distributed Power Unit, a locomotive set capable of remote-control operation in conjunction with locomotive units at the train’s head end. DPUs are placed in the middle or at the rear of heavy trains (such as coal, grain, soda ash and even manifest) to help climb steep grades. LaGrange, Illinois. 6 July 2023.
BNSF ACe #9298

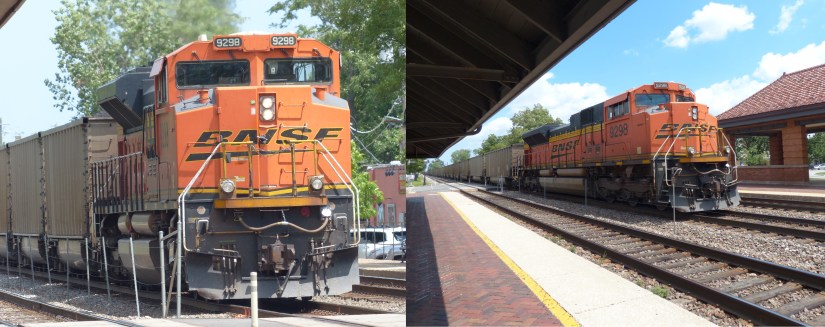

BNSF ACe #9298 leads a westbound consist through Riverside, Illinois. 1 August 2022. Photo location: Platform 1. Riverside METRA Station.
BNSF ACe #9303

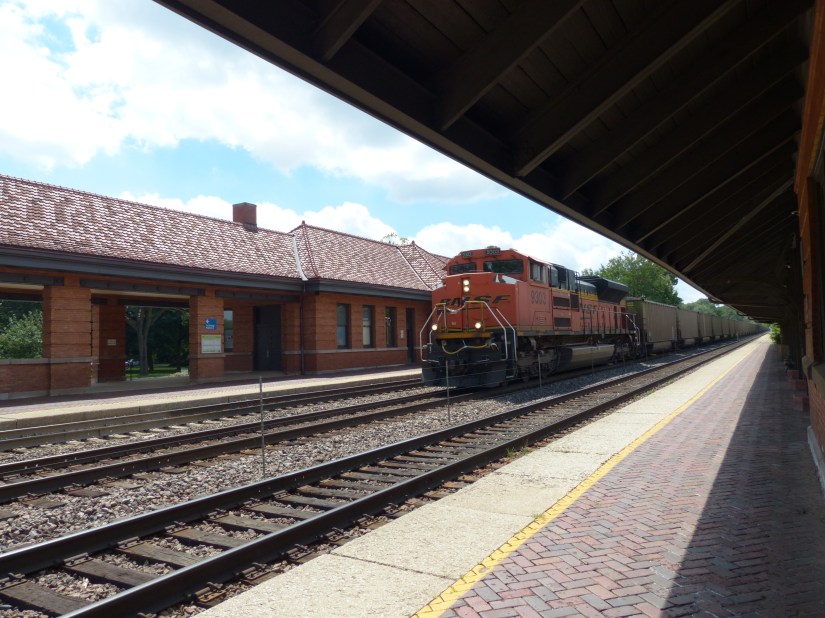

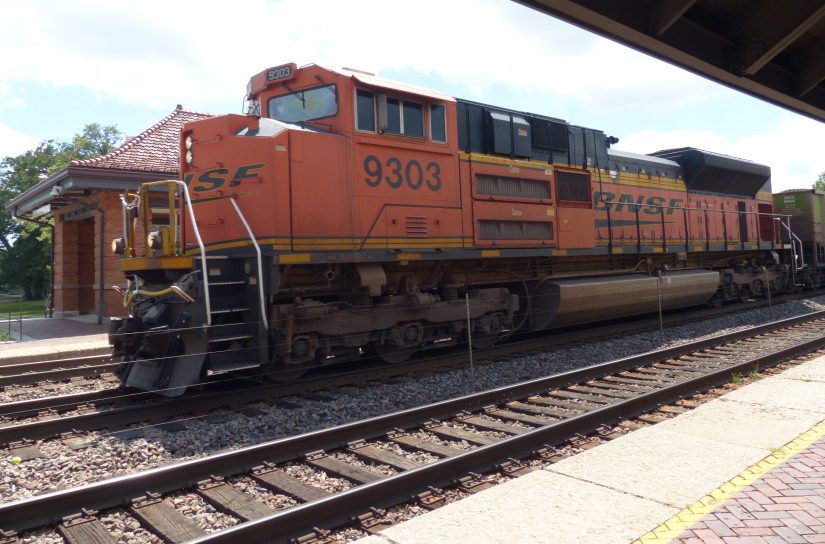

BNSF ACe #9303 leads an eastbound hopper consist through Riverside, Illinois. 1 August 2022.
BNSF ACe #9303
BNSF ACe #9303 leads an eastbound hopper consist through Riverside, Illinois. Side angled view. 1 August 2022.

Ferromex ACes

Ferromex is the largest railroad operating company in Mexico. it was founded in 1998 and followed the privatization of most of the country’s state-owned railroads. It is owned in the majority by Grupo Mexico, and the minority share is owned by Union Pacific.

The colorful liveries of these locomotives are a standout for railfans on the lookout for unusual or historic color schemes. The colors signify those of Mexico’s national flag- red, green, and white. The colors add to visibility at railroad crossings.

Ferromex Special “Corporate Blue/Executive Blue” Livery.

This unusual livery is displayed on FXE ACe #4029. It is subdued compared to the livery shown below on FXE #4048, the standard company livery with the tricolor scheme.

This special livery is in dark blue and gray, with a red cab displaying Mexico’s national flag. The Ferromex lettering is clean and large across the hood of the locomotive. There is minimal striping, with the usual tricolor striping absent from this scheme.

FXE #4029 in special corporate blue livery

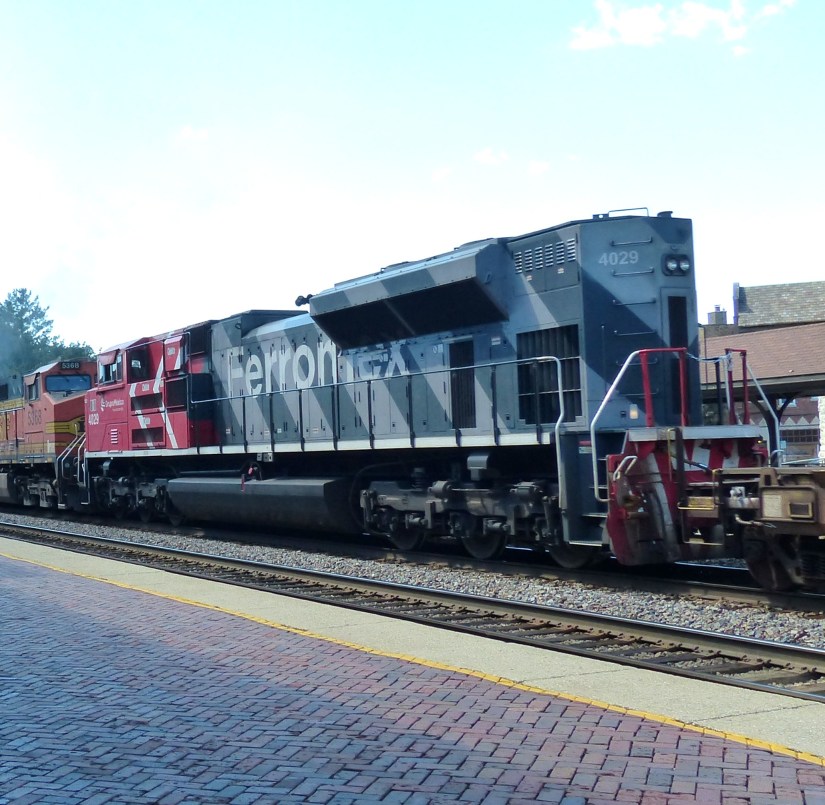

FXE ACe #4029 shows off the special and rarely-noticed corporate blue livery implemented in the mid-2010s during a company refresh. 31 August 2022. Riverside, IL. Locomotive specs: Model: EMD SD70ACe. Serial and frame number: 20106395-015. Order number: 20106395. Built: 04/2011.

Ferromex Tricolor Livery

FXE locomotive ACe #4048
Ferromex ACe #4048 is third in this westbound consist through Riverside, Illinois. 19 October 2022. Locomotive specs: Build date: 06/2011. Serial Number: 20106395-034. Order No: 20106395
Frame Number: 20106395-034.
Ferromex FXE ACe #4048

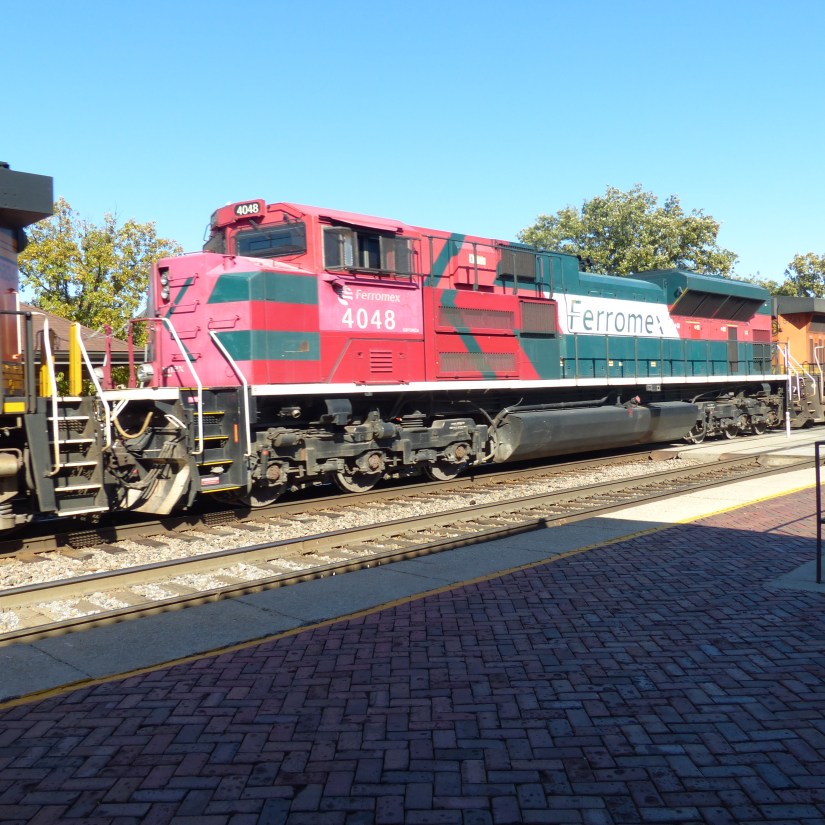

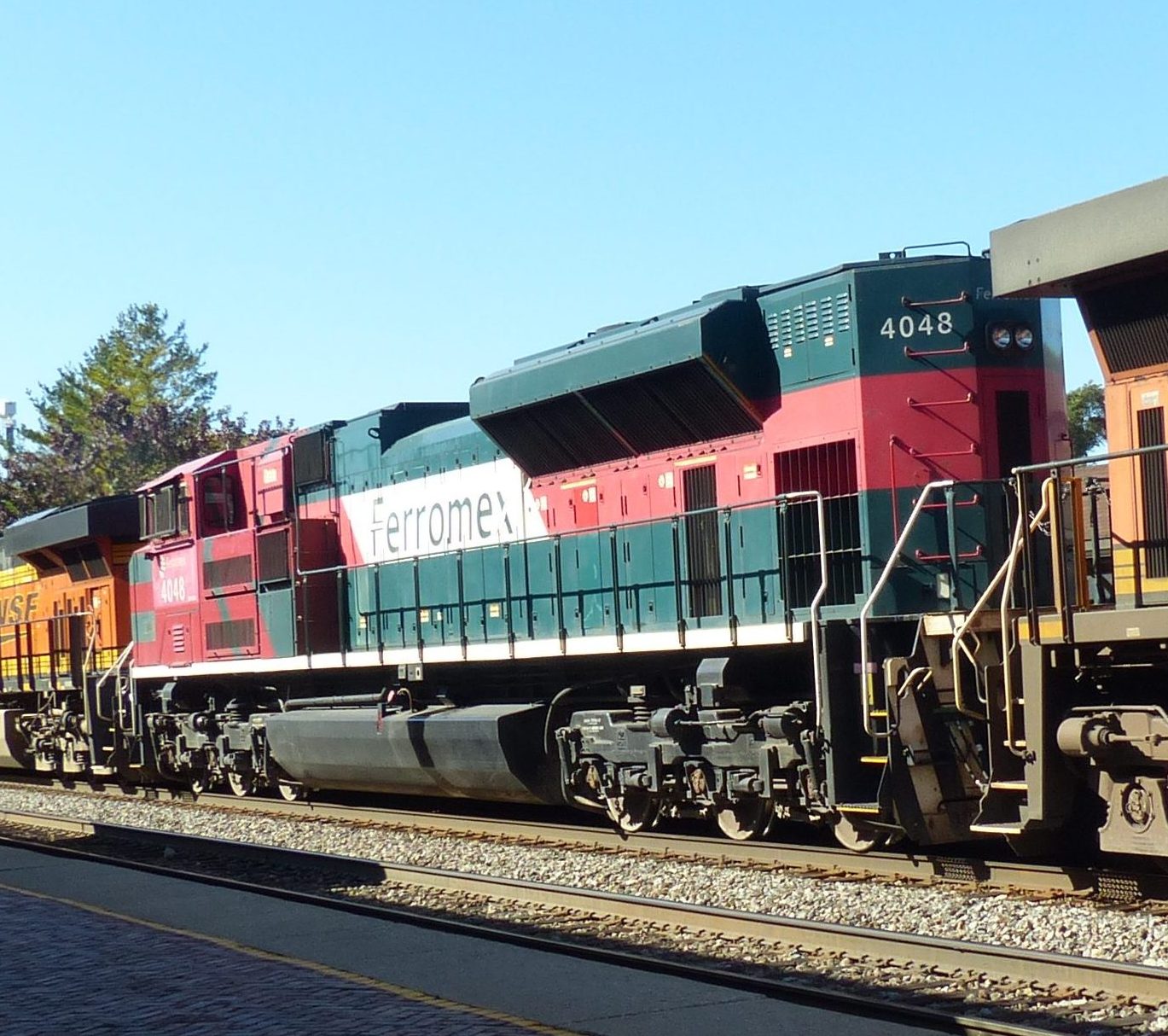

The colorful livery of Ferromex locomotives is displayed in this side view of ACe #4048. It is third in this consist. 19 October 2022. Riverside, Illinois.

Kansas City Southern ACes

Kansas City Southern locomotives display the classic livery called Southern Belle. It is in deep red, a rich yellow, and a dark green called Brunswick green. The Southern Belle was the company’s flagship train.

KCS ACe #4045

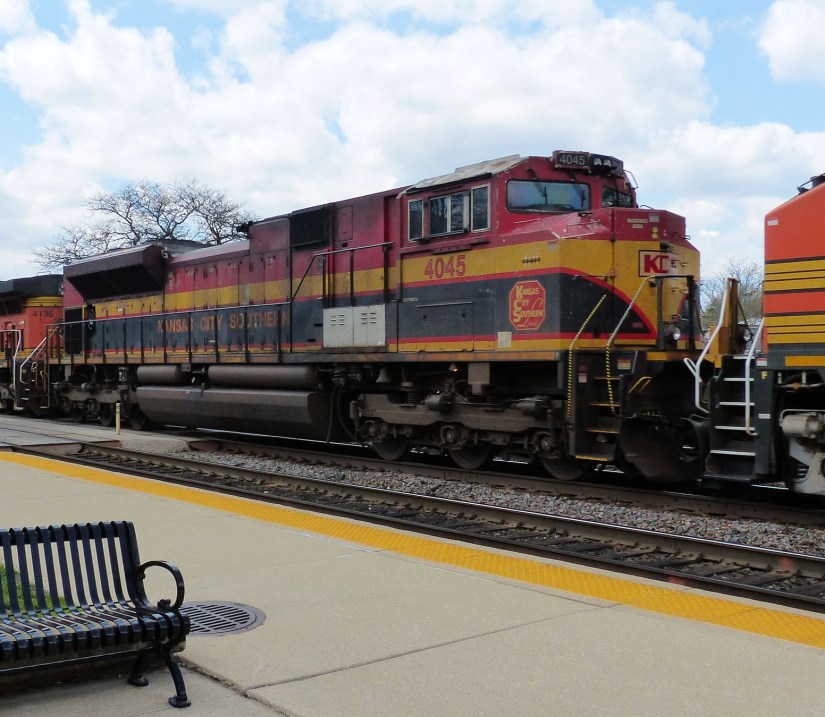

Kansas City Southern’s classic livery stands out on ACe #4045 in this westbound locomotive consist. Hinsdale, Illinois. 24 April 2023. Locomotive specs: Model: EMD SD70ACe. Serial and frame number: 20066856-016. Order number: 20066856. Built: 08/2007.
